WeChat Pay

WeChat Pay is one of China‘s leading payment methods. Since its start as a chat app, WeChat has grown to become a market-leading platform by connecting people, services, and businesses in China and around the world.

Tip

Visit Wirecard website to find out all benefits of WeChat payment.

From merchant perspective, WeChat can be either one-step or two-step payment:

  • In case end-consumer (buyer) is not prompted to authorize payment on his device then all is needed is one request.

  • In case end-consumer (buyer) is prompted to authorize payment with password or other equivalent (pin code, fingerprint, etc.) then merchant has to query Wirecard ePOS system in order to get the final status of WeChat transaction. Technically-wise, it means that initial request (PURCHASE) has to be followed by query request (CONFIRM).

Sequence Diagrams

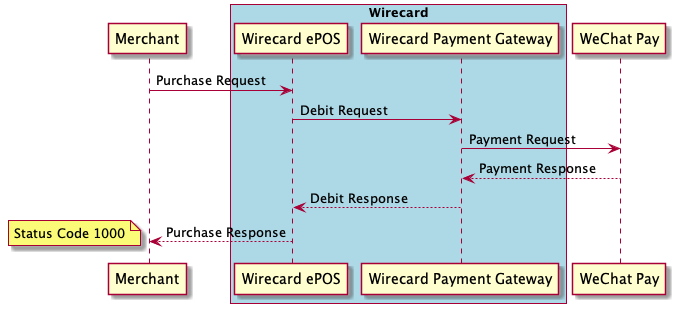

1-step WeChat payment

WeChat

2-step WeChat payment

WeChat

Note

Sale requests are serviced at following URL:

https://switch.wirecard.com/mswitch-server/v1/sales

In context of Wirecard ePOS, term Purchase is used for both:

  • type of Sale - called Sale-Purchase - created by request with PURCHASE operation
  • transaction type - Cash Purchase transaction, Card Purchase transaction, Alipay Purchase transaction and WeChat Purchase transaction

Purchase Operation

In order to process WeChat payment, make a POST /v1/sales call:

Request

{
    "multitender": "true",
    "operation" : "PURCHASE",
    "note" : "Example Note",
    "externalId": "123456789",
    "totalAmount" : 10,
    "currencyCode" : "EUR",
    "payments" : [
        {
            "paymentMethod" : "WECHAT",
            "transactionType" : "PURCHASE",
            "amount" : 10,
            "consumerId" : "15050011719660761"
        }
    ]
}
  • "multitender" - boolean value
    • "TRUE" - required
    • "FALSE" - deprecated
  • "operation" - defines type of Sale request; PURCHASE operation creates Sale-Purchase record
  • "note" - optional field - used for merchant tracking purposes; it is forwarded to payment gateway in <order-detail> field
  • "externalId" - optional field - used for merchant tracking purposes; it is forwarded to payment gateway in <order-number> field
  • "totalAmount" - defines amount of Sale-Purchase
  • "currencyCode" - defines currency, based on ISO 4217 standard
  • "payments" - includes payment-specific information
    • "paymentMethod" - defines payment method
    • "transactionType" - defines type of transaction; PURCHASE transaction moves funds from end-consumer to merchant
    • "amount" - defines transaction amount
    • "consumerId" - value of scanned barcode (QR code)

Tip

In order to simulate 1-step WeChat payment, use the following "note" : "p_wch_oknc" with PURCHASE operation.

Response indicating 1-step WeChat payment

In order to identify whether the follow-up CONFIRM operation is required, status code has to be interpreted.

Status Code 1000 indicates that WeChat purchase transactions is completed and no follow-up request is required.

{
    "operation": "PURCHASE",
    "timeStamp": "2019-05-07T12:12:38.177Z",
    "status": {
        "code": "1000",
        "result": "SUCCESS"
    },
    "id": "241e578a773a4d869408f43928ddf1fd",
    "externalCashierId": null,
    "payments": [
        {
            "paymentMethod": "WECHAT",
            "transactionType": "PURCHASE",
            "id": "776af8e4a4d843129149bdf8b73c08b9",
            "timeStamp": "2019-05-07T12:12:32.9Z",
            "statuses": [
                {
                    "result": "SUCCESS",
                    "code": "1000",
                    "message": "Transaction OK."
                }
            ],
            "wechatProviderTransactionId": "f75ab0866f55477cb35a2db5db6bb10d",
            "wechatRate": "691870000",
            "wechatSubMchId": "444917",
            "wechatCashFee": "6919",
            "wechatTimeEnd": "20190507201238",
            "gatewayReference": "573ee979-a265-49b9-b020-27418dbb63ef"
        }
    ],
    "externalId": null,
    "merchantReceiptId": 262,
    "multitender": true
}
  • "operation" - echoed from request
  • "timeStamp" - date-time when response was constructed
  • "status"
    • "code" - "1000" means operation is completed successfully
    • "result" - "SUCCESS" means operation is completed successfully
  • "id" - Sale-Purchase identifier assigned by Wirecard ePOS system
  • "externalCashierId" - relevant for Advanced Integration; otherwise null
  • "payments" - specific information for every payment method
    • "paymentMethod" - echoed from request
    • "transactionType" - echoed from request
    • "id" - identifier of purchase transaction assigned by Wirecard ePOS system
    • "timeStamp" - date-time when transaction was processed by payment gateway
    • "statuses"
      • "result" - "SUCCESS" means transaction is completed successfully
      • "code" - "1000" means transaction is completed successfully
      • "message" - message provided by payment gateway
    • "wechatProviderTransactionId" - transaction identifier in WeChat System
    • "wechatRate" - exchange rate between Sale currency and CNY in WeChat System; 691870000 means 6.918
    • "wechatSubMchId" - merchant identifier in WeChat System
    • "wechatCashFee" - amount in CNY (Chinese Yuan); 6919 means 69.19 CNY
    • "wechatTimeEnd" - date-time in WeChat system
    • "gatewayReference" - transaction identifier in Wirecard payment gateway
  • "externalId" - echoed from request
  • "merchantReceiptId" - unique identifier per merchant; it is incremented with every Sale-Purchase and Sale-Return; advised to be printed on receipt as a barcode
  • "multitender" - echoed from request

Important

After successful response, making GET /v1/sales/{id} call is advised, as it provides all information.

Response indicating 2-step WeChat payment

In order to identify whether the follow-up CONFIRM operation is required, status code has to be interpreted.

Status Code 1001 indicates that WeChat purchase transactions is not completed and follow-up CONFIRM request is required.

{
    "operation": "PURCHASE",
    "timeStamp": "2019-05-07T12:01:24.703Z",
    "status": {
        "code": "1001",
        "result": "SUCCESS"
    },
    "id": "3c9cf14fe82f42bfbecb6dec22edbfe3",
    "externalCashierId": null,
    "payments": [
        {
            "paymentMethod": "WECHAT",
            "transactionType": "PURCHASE",
            "id": "9685e8c3620a4c6b8e98518c7b2427d4",
            "timeStamp": "2019-05-07T12:01:24.614Z",
            "statuses": [
                {
                    "result": "SUCCESS",
                    "code": "1001",
                    "message": "Transaction OK."
                }
            ],
            "wechatSubMchId": "693876",
            "gatewayReference": "c7d76bcf-595d-4318-a9b9-38ac9ac1d53a"
        }
    ],
    "externalId": null,
    "merchantReceiptId": 261,
    "multitender": true
}
  • "operation" - echoed from request
  • "timeStamp" - date-time when response was constructed
  • "status"
    • "code" - "1001" means operation is successful, however follow-up CONFIRM request is required to complete WeChat purchase transaction
    • "result" - "SUCCESS" means operation is successful
  • "id" - Sale-Purchase identifier assigned by Wirecard ePOS system
  • "externalCashierId" - relevant for Advanced Integration; otherwise null
  • "payments" - specific information for every payment method
    • "paymentMethod" - echoed from request
    • "transactionType" - echoed from request
    • "id" - identifier of purchase transaction assigned by Wirecard ePOS system
    • "timeStamp" - date-time when transaction was processed by payment gateway
    • "statuses"
      • "result" - "SUCCESS" means transaction is successful
      • "code" - "1001" means transaction is successful
      • "message" - message provided by payment gateway
    • "wechatSubMchId" - merchant identifier in WeChat System
    • "gatewayReference" - transaction identifier in Wirecard payment gateway
  • "externalId" - echoed from request
  • "merchantReceiptId" - unique identifier per merchant; it is incremented with every Sale-Purchase and Sale-Return; advised to be printed on receipt as a barcode
  • "multitender" - echoed from request

Confirm Operation

Request

{
    "operation" : "CONFIRM",
    "originalSaleId" : "3c9cf14fe82f42bfbecb6dec22edbfe3",
    "payments" : [
        {
            "paymentMethod" : "WECHAT",
            "transactionType" : "CONFIRM"
        }
    ]
}
  • "operation" - defines type of Sale request; CONFIRM operation does finish the WeChat Purchase transaction
  • "originalSaleId" - identifier of original Sale-Purchase
  • "payments" - includes payment-specific information
    • "paymentMethod" - defines payment method; it must be same as original payment transaction
    • "transactionType" - defines type of transaction; CONFIRM operation must include CONFIRM" transaction type

Response

Status Code 1000 indicates that WeChat purchase transaction is completed successfully.

{
    "operation": "CONFIRM",
    "timeStamp": "2019-05-07T12:02:24.739Z",
    "status": {
        "code": "1000",
        "result": "SUCCESS"
    },
    "id": "3c9cf14fe82f42bfbecb6dec22edbfe3",
    "externalCashierId": null,
    "payments": [
        {
            "paymentMethod": "WECHAT",
            "transactionType": "CONFIRM",
            "id": "9685e8c3620a4c6b8e98518c7b2427d4",
            "timeStamp": "2019-05-07T12:02:24.641Z",
            "statuses": [
                {
                    "result": "SUCCESS",
                    "code": "1000",
                    "message": "Transaction OK."
                }
            ],
            "wechatProviderTransactionId": "dced92fe6e5042a8856bf8e3dc7c15f8",
            "wechatRate": "691870000",
            "wechatSubMchId": "839907",
            "wechatCashFee": "6919",
            "wechatTimeEnd": "20190507200224",
            "gatewayReference": "ae0d14df-7528-4e5e-b2d6-4393b8c767d9"
        }
    ]
}
  • "operation" - echoed from request
  • "timeStamp" - date-time when response was constructed
  • "status"
    • "code" - "1000" means operation is successful
    • "result" - "SUCCESS" means operation is successful
  • "id" - Sale-Purchase identifier assigned by Wirecard ePOS system
  • "externalCashierId" - relevant for Advanced Integration; otherwise null
  • "payments" - specific information for every payment method
    • "paymentMethod" - echoed from request
    • "transactionType" - echoed from request
    • "id" - identifier of purchase transaction assigned by Wirecard ePOS system
    • "timeStamp" - date-time when transaction was processed by payment gateway
    • "statuses"
      • "result" - "SUCCESS" means transaction is successful
      • "code" - "1000" means transaction is successful
      • "message" - message provided by payment gateway
    • "wechatProviderTransactionId" - transaction identifier in WeChat System
    • "wechatRate" - exchange rate between Sale currency and CNY in WeChat System; 691870000 means 6.918
    • "wechatSubMchId" - merchant identifier in WeChat System
    • "wechatCashFee" - amount in CNY (Chinese Yuan); 6919 means 69.19 CNY
    • "wechatTimeEnd" - date-time in WeChat system
    • "gatewayReference" - transaction identifier in Wirecard payment gateway

Important

After successful response, making GET /v1/sales/{id} call is advised, as it provides all information.

Reverse Operation

REVERSE operation is typically used in case purchase transaction was created accidentally and hence needs to be reversed.

In order to reverse WeChat purchase transaction, make a POST /v1/sales call:

Reverse Request

{
    "operation": "REVERSE",
    "originalSaleId": "a0a09836df08426b92d4805294bdae42",
    "payments": [
        {
            "paymentMethod": "WECHAT",
            "transactionType": "REVERSAL",
            "originalTransactionId" : "809364e83e3043c7a15182140d55268e"
        }
    ]
}
  • "operation" - defines type of Sale request
  • "originalSaleId" - identifier of original Sale-Purchase
  • "payments" - includes payment-specific information
    • "paymentMethod" - defines payment method; it must be same as original payment transaction
    • "transactionType" - defines type of this transaction; REVERSE operation must include REVERSAL transaction type
    • "originalTransactionId" - identifier of original WeChat purchase transaction which will be reversed

Reverse Response

{
    "operation": "REVERSE",
    "timeStamp": "2019-05-16T13:08:24.657Z",
    "status": {
        "code": "1000",
        "result": "SUCCESS"
    },
    "id": "a0a09836df08426b92d4805294bdae42",
    "externalCashierId": null,
    "payments": [
        {
            "paymentMethod": "WECHAT",
            "transactionType": "REVERSAL",
            "id": "c254b80758574ce387d3852e1d69c3ec",
            "timeStamp": "2019-05-16T13:08:24.553Z",
            "statuses": [
                {
                    "result": "SUCCESS",
                    "code": "1000",
                    "message": "Transaction OK."
                }
            ],
            "wechatProviderTransactionId": "adfc24a6c25343ce86f5cb180a5cc528",
            "wechatRate": "691870000",
            "wechatSubMchId": "067227",
            "wechatDeviceInfo": "dell",
            "wechatCashFee": "6919.00",
            "wechatTimeEnd": "20190516210824",
            "gatewayReference": "8ba7937e-ea22-4b9f-855a-dce11e4a29b7"
        }
    ]
}

In order to explicitly change state of Sale-Purchase to CANCELED, make a POST /v1/sales call with CANCEL operation.

Return Operation

RETURN operation is used in case end-consumer returns merchandise and asks for a refund. Wirecard ePOS support partial as well as full return.

In order to process WeChat refund transaction, make a POST /v1/sales call defined below:

Request

{
    "operation" : "RETURN",
    "totalAmount" : 10,
    "currencyCode" : "EUR",
    "originalSaleId" : "1025a74c86564982988f66a46489d87a",
    "payments" : [
        {
            "paymentMethod" : "WECHAT",
            "transactionType" : "REFERENCE_REFUND",
            "amount" : 10,
            "originalTransactionId" : "f4c16e2ee76d44d2adfc42b97ac3e5a0"
        }
    ]
}

Response

{
    "operation": "RETURN",
    "timeStamp": "2019-05-17T10:40:48.648Z",
    "status": {
        "code": "1000",
        "result": "SUCCESS"
    },
    "id": "ba313afaf21e445abc802ab63bb69c5a",
    "externalCashierId": null,
    "payments": [
        {
            "paymentMethod": "WECHAT",
            "transactionType": "REFERENCE_REFUND",
            "id": "1baf69229f584858ad524585db27115a",
            "timeStamp": "2019-05-17T10:40:48.533Z",
            "statuses": [
                {
                    "result": "SUCCESS",
                    "code": "1000",
                    "message": "Transaction OK."
                }
            ],
            "wechatProviderTransactionId": "f5fd9c49306a4322a9e613d741c71de3",
            "wechatRate": "691870000",
            "wechatSubMchId": "785721",
            "wechatDeviceInfo": "dell",
            "wechatCashFee": "6919.00",
            "wechatTimeEnd": "20190517184048",
            "gatewayReference": "4fb9f8a2-7fb9-4fd7-a88c-154f58fb7ab8"
        }
    ],
    "externalId": null,
    "merchantReceiptId": 270
}

Get a Sale Call

Example of GET /v1/sales/{id} call with excluded merchant and user fields (described in Merchant Details and User Management respectively):

GET https://switch-test.wirecard.com/mswitch-server/v1/sales/3c9cf14fe82f42bfbecb6dec22edbfe3?excludeField=merchant&excludeField=user

{
    "id": "3c9cf14fe82f42bfbecb6dec22edbfe3",
    "type": "PURCHASE",
    "status": "COMPLETED",
    "totalAmount": 10,
    "note": null,
    "externalId": null,
    "externalCashierId": null,
    "customerId": null,
    "initialized": "2019-05-07T12:01:24.44Z",
    "shop": null,
    "currency": {
        "number": 978,
        "code": "EUR",
        "name": "Euro",
        "minorUnit": 2
    },
    "unitPricesIncludeTax": null,
    "items": [
    ],
    "transactions": [
        {
            "type": "WECHAT_PURCHASE",
            "id": "9685e8c3620a4c6b8e98518c7b2427d4",
            "status": "COMPLETED",
            "amount": 10,
            "lastUpdated": "2019-05-07T12:02:24.668Z",
            "initialized": "2019-05-07T12:01:24.442Z",
            "message": "The resource was successfully created on WeChat side.\nWas: The resource was successfully created on WeChat side, but password confirmation is needed.",
            "gateway": {
                "id": "wdEeSimulated",
                "name": "Wirecard EE Simulated",
                "type": "WIRECARD_EE_SIMULATED",
                "url": "http://dummy"
            },
            "gatewayReference": "c7d76bcf-595d-4318-a9b9-38ac9ac1d53a",
            "processedByGateway": "2019-05-07T12:01:24.614Z",
            "wechatProviderTransactionId": "dced92fe6e5042a8856bf8e3dc7c15f8",
            "wechatRate": "691870000",
            "wechatSubMchId": "839907",
            "wechatDeviceInfo": "dell",
            "wechatCashFee": "6919.00",
            "wechatTimeEnd": "20190507200224",
            "autoResolveTransactions": [

        ],
            "transactionBarcodeId": "15050011719660761"
        }
    ],
    "location": null,
    "clientInfo": null,
    "merchantReceiptId": 261,
    "cancelledBy": null,
    "shiftId": null,
    "cashRegisterId": null,
    "emailForReceipt": null,
    "emailForReceiptProvided": false,
    "multitender": true
}

Purchase Transaction Lifecycle

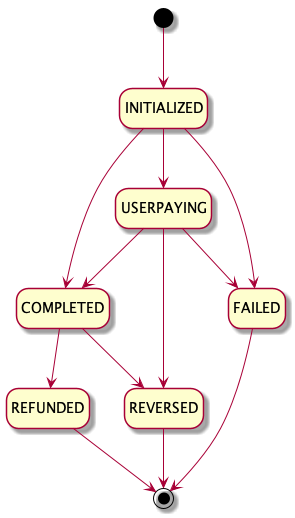

WeChat Purchase Lifecycle

Tip

To see all /v1/sales request & response examples, click here.
